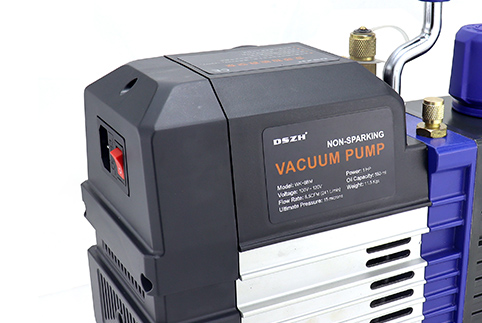

无刷防爆电机

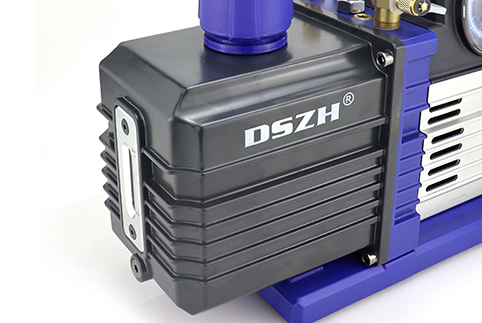

一体式气缸

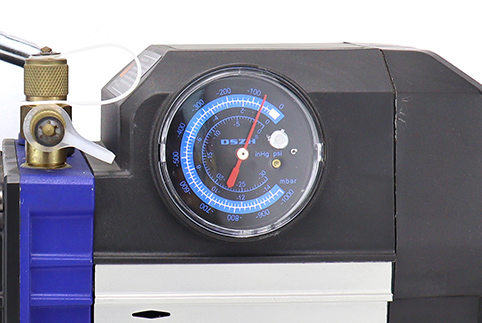

高精度真空表

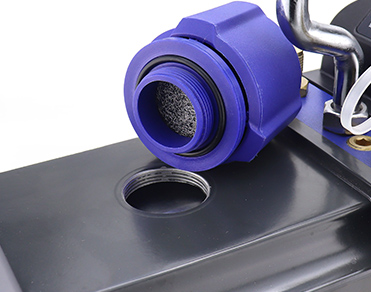

过滤油雾,减少污染

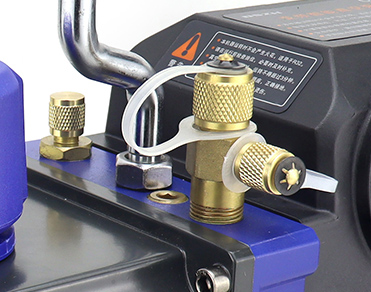

结实耐用

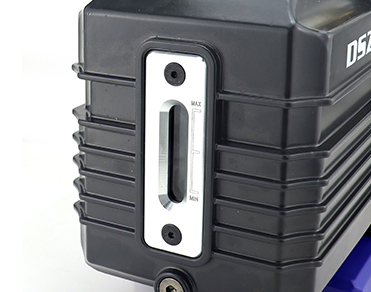

防止缺油,及时加油

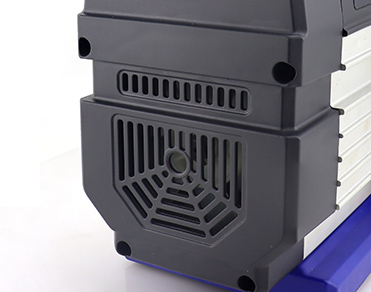

有效保护机器性能
型号 | WK-8S | WK-10S | WK-12S | WK-6BM | WK-8BM | WK-10BM | WK-12BM |
速率 | 8.5 CFM | 10.5 CFM | 12.5 CFM | 6.5 CFM | 8.5 CFM | 10.5 CFM | 12.5 CFM |
241 L/MIN | 297 L/MIN | 354 L/MIN | 184 L/MIN | 241 L/MIN | 297 L/MIN | 354 L/MIN | |
级数 | 单级 | 单级 | 单级 | 双级 | 双级 | 双级 | 双级 |
极限真空 | 2 Pa | 2 Pa | 2 Pa | 2x10-1 Pa | 2x10-1 Pa | 2x10-1 Pa | 2x10-1 Pa |
60 microns | 60 microns | 60 microns | 15 microns | 15 microns | 15 microns | 15 microns | |
功率 | 1HP | 1HP | 1HP | 1HP | 1HP | 1HP | 1HP |
接口 | 1/4" & 3/8" flare | 1/4" & 3/8" flare | 1/4" & 3/8" flare | 1/4" & 3/8" flare | 1/4" & 3/8" flare | 1/4" & 3/8" flare | 1/4" & 3/8" flare |
泵油容量 | 600 ml | 600 ml | 600 ml | 550 ml | 550 ml | 600 ml | 600 ml |
外形尺寸 | 315x136x312mm | 315x136x312mm | 315x136x312mm | 352x136x312mm | 352x136x312mm | 352x136x312mm | 352x136x312mm |
重量 | 11 kgs | 11 kgs | 11 kgs | 11.5 kgs | 11.5 kgs | 11.5 kgs | 11.5 kgs |
